In radio communications there are many items (amplifiers, attenuators, signal splitters and combiners, lossy cables etc) that either increase or decrease the signal level. It is very crucial to choose the right cable type in as exact length as possible for the specific frequency. We provide low loss coaxial cables and most common connectors directly from stock. Other types of cable can also be ordered through us. By request we can provide these cables custom made assembled with connectors.

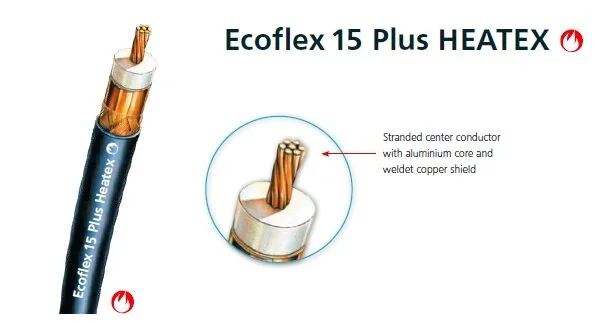

Ecoflex 15 Plus Heatex
Ecoflex 15 Plus Heatex is a halogen-free and flame-retardant coaxial cable for use in buildings, plants, ships and hazardous areas. Ecoflex cables with Heatex sheaths are flame retardant and have a low fire propagation. Heatex coats are low in smoke, the escape routes remain visible in case of fire. Heatex coats are halogen-free and contain no reactive elements such as fluorine, chlorine and bromine. They do not produce corrosive gases which can lead to high property damage. Ecoflex 15 Plus Heatex has a 7-core hybrid core conductor with aluminum core and welded copper sheath. The surface finish and the corresponding HF properties are significantly better than those of conventional copper strands. DATASHEET

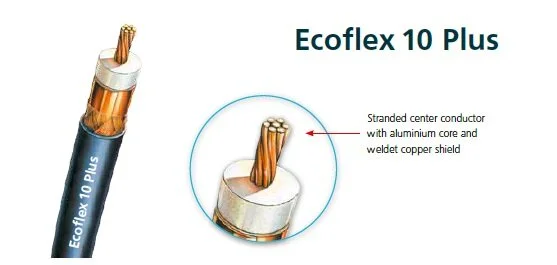

Ecoflex 10 Plus
Ecoflex 10 Plus is a highly flexible, low-loss coaxial cable designed specifically for use up to 8 GHz. State-of-the-art production processes and the use of a low-loss PE-LLC dielectric with a gas content of more than 70% enable very low attenuation values. The Ecoflex 10 Plus sets new standards for flexible coaxial cables. The high flexibility of Ecoflex 10 Plus is ensured by a 7-wire hybrid inner conductor with aluminum core and welded copper sheath. The inner conductor is stranded in precise production steps, compressed, calibrated and then pre-coated to achieve very good damping and adaptation values. Another advantage is the double shielding. An overlapping copper foil and an overlying copper braid ensure a high screen size of> 90 dB at 1 GHz. DATASHEET
Aircell 7 is a highly flexible coaxial cable for the frequency range up to 6 GHz. The very low damping in relation to the diameter and the small bending radius make the application interesting and recommendable for many applications in high-frequency technology. The low attenuation of Aircell 7 is achieved by a low-loss PE-LLC dielectric with a gas content of over 70%. The material is also resistant to moisture. The inner conductor, a 19-conductor strand of low-oxygen copper, allows the extraordinary flexibility of the cable. To achieve good attenuation, the Aircell 7 outer conductor is double-layered: on a thin, overlapping copper foil, a copper shielding braid with a degree of coverage of 85% is applied. The film is PE-coated on the inside and thus protected against cracking if the bending radius is too small. The black PVC outer jacket of Aircell 7 is UV-stabilized. Aircell 7 is a modern and widely used coaxial cable for numerous applications: it is extremely flexible, low-attenuation and anti-radiation. DATASHEET
Aircell 5 is a five millimeter thin, flexible coaxial cable for the frequency range up to 10 GHz. The very low attenuation in relation to the diameter and the alternative usability of standard RG-58 coaxial connectors make this cable the first choice not only for wireless LAN but for many applications in telecommunications. The relatively low attenuation of Aircell 5 is achieved by a low-loss PE-LLC dielectric with a gas content of over 70%. The material is also resistant to moisture. The solid core conductor of Aircell 5 is drawn from low-oxygen copper (OFC). In order to achieve good shielding and low losses, the Aircell 5 outer conductor is made of two layers of copper: on a thin, overlapping copper foil, a shielding layer with a degree of coverage of 70% is applied. The film is PE-coated on the inside and thus protected against cracking if the bending radius is too small. The black PVC outer jacket of Aircell 5 is UV-stabilized. DATASHEET
