Overview

When ship's topside needs to be occupied by multiple antennas, several problems may arise concerning isolation of signals and placement of antennas.

proGPS™ family of GNSS (global navigation satellite system) products is designed to improve the reliability and performance of navigation equipment.

Intended use of GPS Signal Splitter

proGPS™ GPS signal splitters are used to split active and passive GPS antenna’s RF-signal to several GPS receivers.

It can be used not only with traditional GPS receivers but also communication systems like TETRA which has in-built GPS receivers in radios and require a separate antenna connection e.g. not able to use existing GPS NMEA data.

Other systems are fleet management and PC-based systems that quite often has GPS receiver and would require otherwise its own antenna.

Common Features of signal splitters

Instant installation to retrofits
Reduced cabling
Galvanically isolated antenna from receivers
Galvanically isolated from ship's mains power
Galvanically isolated from the ground
Signal protection with high interference rejection
Robust design and durable aluminum casing

Local maritime authorities and GMDSS regulations

If the vessel falls under the GMDSS regulations the use of proGPS™ GPS signal splitters should always be approved by local authorities or relevant class society if it is going to be installed with IMO approved (Wheelmark) positioning equipment. Even though the proGPS™ technology does not increase risk for malfunction in communication systems the local interpretation of IMO guidelines might vary.

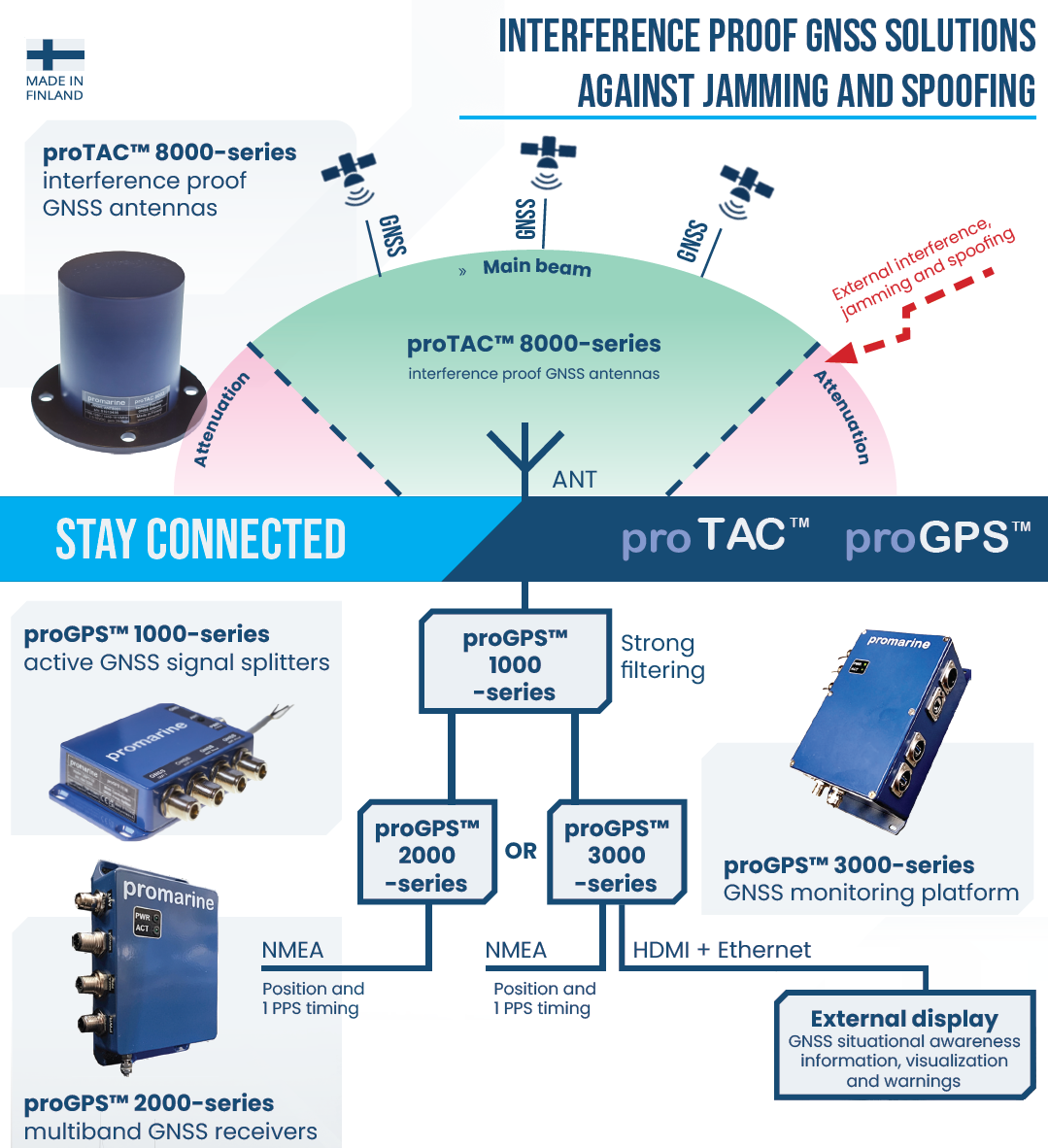

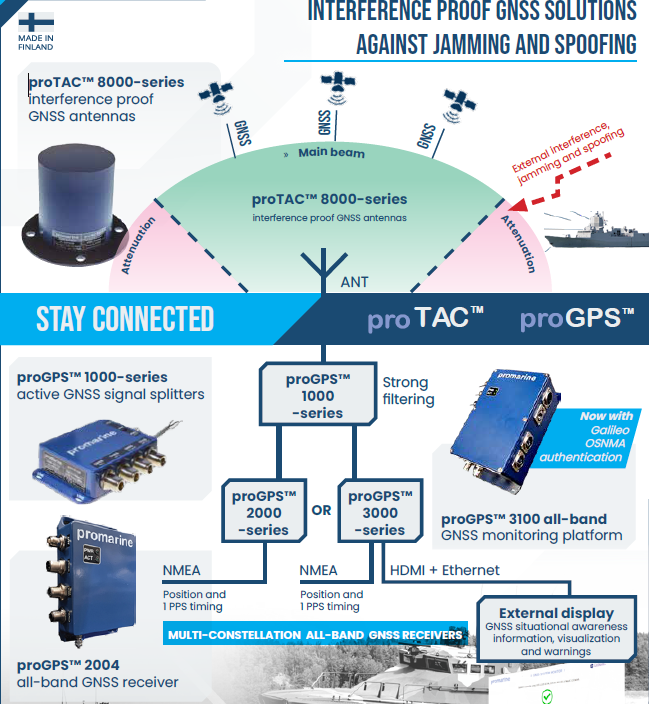

NEW! proGPS3100 GNSS Monitoring Platform - Interference-Proof Solutions Against Jamming and Spoofing

Promarine’s proven GNSS antennas and intelligent proGPS3100 monitoring platform deliver trusted performance for mission-critical operations. Designed for precise positioning and accurate timing, the system ensures resilient situational awareness even in challenging environments. proGPS3100 keeps you connected, protected, and in control. Contact sales @ promarine.fi for more details!

proTAC GNSS antennas

Featured

proTAC 8001

Robust active antenna for GNSS 1575-1606 MHz (GPS, Glonass, Galileo…) navigation receivers. Maximum filtering against interfering signals. DC-grounding adds protection towards EMC, static charging and lightning strikes. A and B model available.

proTAC 8002

Robust active antenna for GNSS 1575-1606 MHz (GPS, Glonass, Galileo…) navigation receivers. Maximum filtering against interfering signals. DC-floating design enables the use with any GPS receiver and the TNC connector fits to the most of existing antenna cables. A and B model available.

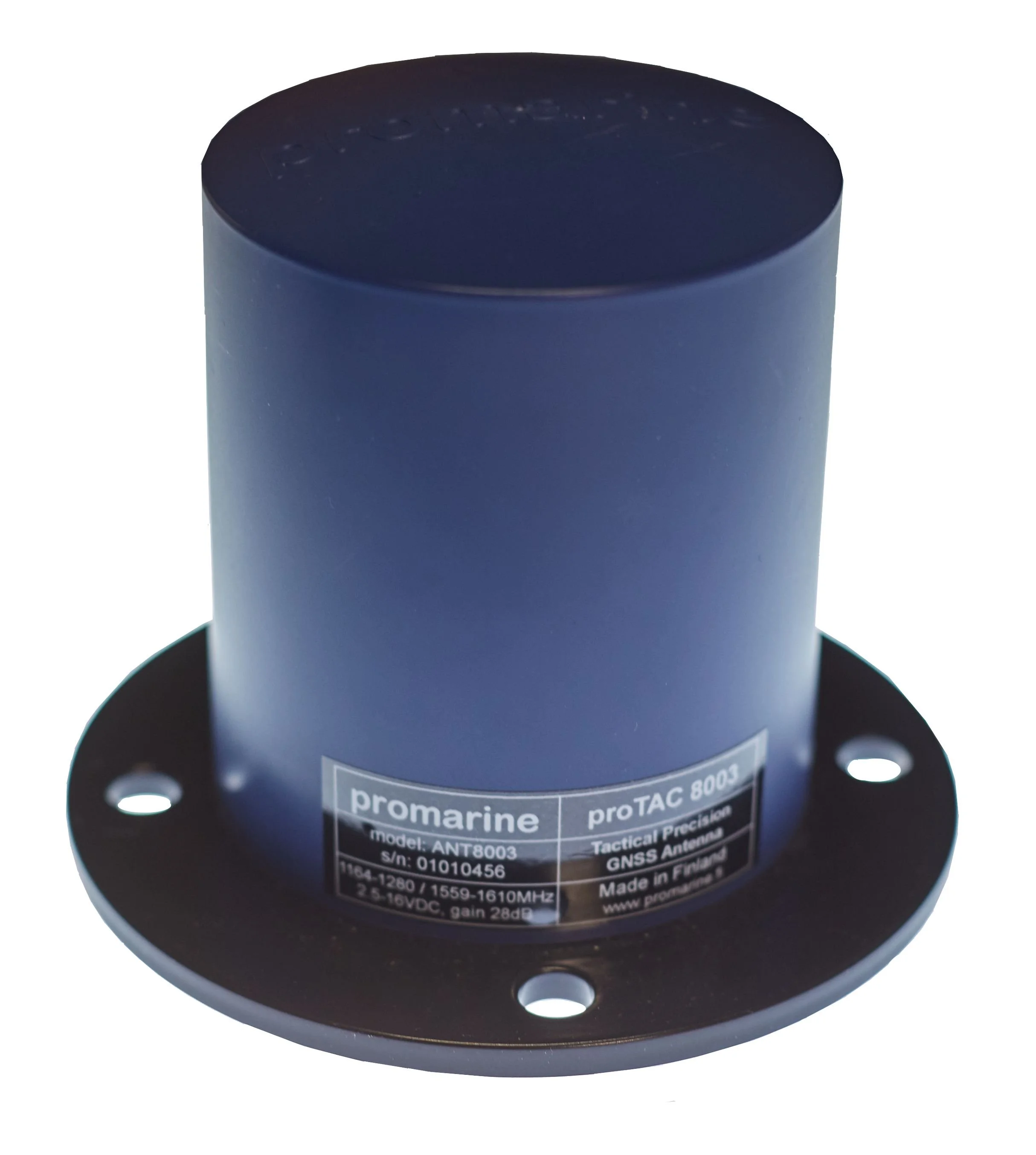

proTAC 8003

Robust dual band antenna that supports all of the upper band 1575MHz GNSS positioning signals as well as most important lower band 1225MHz GNSS signals. Its interference proof design is based on the proven proTAC8001 and proTAC8002 series performance. While DC-grounded, it works best with DC-isolated GNSS signal splitters like proGPS series.

proGPS signal splitters

Featured

proGPS 1130 - NEW!

proGPS1130 is amplified and filtered 4-way multi-constellation and multiband (L1/L2/L5,E1/E5a/E5b/E6,G1/G2/G3) GNSS signal splitter specially designed to operate with interference proof proTAC8003 multiband GNSS antenna. Unleash the full potential of your GPS with proGPS1130's two steep passbands, ensuring uninterrupted signals.

proGPS 1120

An amplified and filtered 4-way GNSS signal splitter that can be used with both active and passive antennas. It is designed for L1, E1, G1 and B1 bands. Its narrowband design improves its survivability in the heavily interefered environments.

PRODUCT CHANGE NOTIFICATION

proGPS 1200

A passive GNSS signal splitter that uses GPS receiver’s power supply to feed the active antenna. It covers the whole GNSS band from 1100 MHz to 1650 MHz.

proGPS1220

proGPS1220 is a high performance, 2-way passive wide-band GNSS signal splitter, optimized for seamless integration with next-generation multiband GNSS receivers across the 1100MHz-1650MHz spectrum. With low insertion loss, high isolation, and full satellite system compatibility, it ensures precision and reliability for demanding applications. Supports all major GNSS signals: L1-L6, G1-G2, E1-E6, B1-B3, and beyond.

DATASHEET

proGPS 1240

proGPS1240 is a high performance, 4-way passive wide-band GNSS signal splitter, optimized for seamless integration with next-generation multiband GNSS receivers across the 1100MHz-1650MHz spectrum. With low insertion loss, high isolation, and full satellite system compatibility, it ensures precision and reliability for demanding applications. Supports all major GNSS signals: L1-L6, G1-G2, E1-E6, B1-B3, and beyond.

DATASHEET
