True Heading Vector Compass

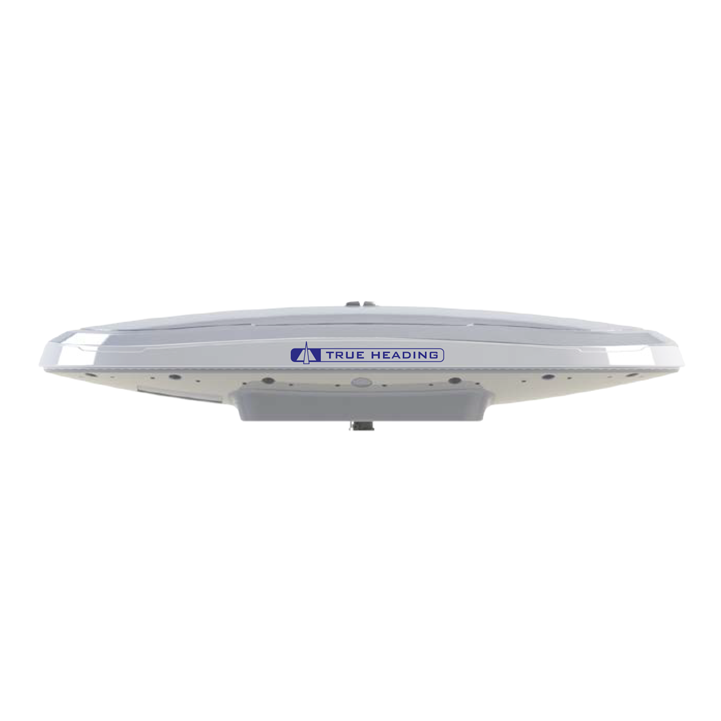

Experience superior navigation from the accurate heading and positioning performance available with the Vector V200 GNSS Compass.

The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance.

The compass – measuring only 35 cm in length – mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provide simple integration into autopilots, chart plotters, and AIS systems.

KEY FEATURES

• L1 GPS, GLONASS, Galileo, BeiDou, QZSS

• 30 cm RMS world-wide positioning accuracy with Atlas corrections

• Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites

• Provides heading, positioning, heave, roll and pitch

• Excellent in-band and out-of-band interference rejection

• 0.75 degree heading accuracy (optional)

DATASHEET

The new VECTOR PRO MK5 GPS Compass has the very same superb heading and positioning performance as it predecessors in the Vector MK-series.

The rugged IP69K design housing is sealed for the harshest environments. It incorporates fixed and pole mounting capability for both marine and land applications.

The Vector Series is suitable for both commercial and professional marine (THD certified), as well as for machine mounting in open-pit mining, construction and other applications.

The VECTOR PRO MK5 utilize all of the recent innovations in Crescent® and Vector technology and is now, besides GPS, also GLONASS capable.

CrossDipole low-multipath antennas are separated by 50 cm between phase centers, resulting in better than 0.3° rms heading performance while delivering position accuracy of better than 30 cm 95% of the time when using SBAS (EGNOS, MSAS & WAAS) or Beacon corrections.

The Pro MK5 supports both NMEA 0183 and NMEA 2000 interfacing, enabling a seamless choice of communication protocols. Crescent Vector technology delivers accurate and continuous performance, including position, heading, heave, pitch and roll. The stability and maintenance free design of the Vector Series replaces traditional gyrocompasses and stand-alone GPS at a fraction of the cost.

KEY FEATURES

* Professional GNSS compass

* IALA beacon receiver for increased accuracy

* Heading accuracy: <0,3 degrees

* Position accuracy; 0,5 m (IALA)

* NMEA0183 /NMEA2000 interface

* 20 Hz update rate

DATASHEET

The new VECTOR LITE MK5 GPS Compass has the very same superb heading and positioning performance as its predecessors in the Vector MK-series.

The rugged IP69K design housing is sealed for the harshest environments. It incorporates fixed and pole mounting capability for both marine and land applications.

The Vector Series is suitable for both commercial and professional marine (THD certified), as well as for machine mounting in open-pit mining, construction and other applications.

The VECTOR LITE MK5 utilize all of the recent innovations in Crescent® and Vector technology and is now, besides GPS, also GLONASS capable.

CrossDipole low-multipath antennas are separated by 50 cm between phase centers, resulting in better than 0.3° rms heading performance while delivering position accuracy of better than 30 cm 95% of the time when using SBAS (EGNOS, MSAS & WAAS) .

The Pro MK5 supports both NMEA 0183 and NMEA 2000 interfacing, enabling a seamless choice of communication protocols. Crescent Vector technology delivers accurate and continuous performance, including position, heading, heave, pitch and roll. The stability and maintenance-free design of the Vector Series replaces traditional gyrocompasses and stand-alone GPS at a fraction of the cost.

KEY FEATURES

* Professional GNSS compass

* SBAS for increased accuracy

* Heading accuracy: <0,3 degrees

* Position accuracy; 0,5 m (SBAS)

* NMEA0183 /NMEA2000 interface

* 20 Hz update rate

DATASHEET

The VECTOR COMPACT is a GPS compass that gives a precise true heading and positioning to a radar, sonar, electronic charts, autopilot and AIS. It has a smart antenna design that does not require external processor or display, which simplifies installation and reduces the need for other equipment. Vector Compact combines two GPS receivers in a housing. Everything is built-in the antenna, and no other devices need to be installed. By using a sophisticated algorithm VECTOR COMPACT has a true rate accuracy of +/-2°. This is much better than any ordinary compasses on smaller commercial craft and pleasure boats, but at similar cost.

Vector Compact provides updated location information of up to 10 Hz and also true heading rate update of up to 10 Hz. It has integrated DGPS source in the form of WAAS and EGNOS. Vector Compact is equipped with a rate gyro, that supports the receiver for quick changes of direction, giving an unprecedented accuracy.

The Vector Compact comes in two versions:

NMEA2000 (Vector Compact-N)

NMEA0183, with the possibility to configure the output ports individually (Vector Compact-S)

If selecting the NMEA0183 version, you have the possibility to configure two NMEA output ports totally different from each other.
This means that you can e.g. set Port A to send HDT@10Hz update rate @4.800 baud, and Port B can be set to be sent e.g. HDT@10Hz, HDM@10Hz and RMC@10Hz update rate @9.600 baud.

The Vector Compact-S includes a 15 m cable prepared with a connector for the compass and unterminated in the other end.

KEY FEATURES

* GPS compass with small dimensions

* SBAS for increased accuracy

* Heading accuracy: 2 degrees

* Position accuracy; 1m (SBAS)

* NMEA0183 interface

* 10 Hz update rate

DATASHEET

The VECTOR COMPACT is a GPS compass that gives a precise true heading and positioning to a radar, sonar, electronic charts, autopilot and AIS. It has a smart antenna design that does not require external processor or display, which simplifies installation and reduces the need for other equipment. Vector Compact combines two GPS receivers in a housing. Everything is built-in the antenna, and no other devices need to be installed. By using a sophisticated algorithm VECTOR COMPACT has a true rate accuracy of +/-2°. This is much better than any ordinary compasses on smaller commercial craft and pleasure boats, but at similar cost.

Vector Compact provides updated location information of up to 10 Hz and also true heading rate update of up to 10 Hz. It has integrated DGPS source in the form of WAAS and EGNOS. Vector Compact is equipped with a rate gyro, that supports the receiver for quick changes of direction, giving an unprecedented accuracy.

The Vector Compact comes in two versions:

NMEA2000 (Vector Compact-N)

NMEA0183, with the possibility to configure the output ports individually (Vector Compact-S)
